Linear Sand Vibrating Screen Sand Sieving Machine For Premixed Dry
Mortar
Product Descriptions of Sand Vibrating Screen:
Mind series sand vibrating screen machine is a kind of new and
efficient sieving equipment, which bears a linear track of its
screen-box movement. This series is a successful model by the
organic combination of probability theory with the engineering
practice. The probability screen has an almost perfect performance
because of its totally novel concept of design and its unique
structure and screening fundamentals so that there lays an
extensive prospect for its application.
Mind series sand vibrating screen machine is designed with full
demonstrability and utmost optimization in additional to the
introduction of the advanced techniques of other countries as well
as the comprehensive consideration of the conditions in our own
country. Compared with the commonly-used machine this series bears
extremely high screening efficiency.
Parameters of Dry Mortar Sieving Machine:
| Model | Mesh size (mm) | Feeding Size (mm) | Amplitude (mm) | Layers | Power(KW) | Dimension(mm) |
| 520 | 500*2000 | 0.074-10 | 4--10 | 1--5 | 0.4*2 | 2140*808*848 |
| 525 | 500*2500 | 0.074-10 | 4--10 | 1--5 | 0.4*2 | 2642*808*848 |
| 1020 | 1000*2000 | 0.074-10 | 4--10 | 1--5 | 0.75*2 | 2152*1320*900 |
| 1025 | 1000*2500 | 0.074-10 | 4--10 | 1--5 | 0.75*2 | 2642*1320*900 |
Features of Silica Sieving Machine:
Mind sand vibrating screen is a straight line trajectory,
multi-layer large angle screen surface, top-down Screen angle
increments, using probability theory, mesh sieve size larger than
needed, usually 1.2-2.2 times, greatly improving the screening
production efficiency and capacity. According to dry mortar’s
screening requirements, our factory successful develop fine-grained
closed probability screen.
Mind sand vibrating screen can also be used for light industry,
chemical, pharmaceutical, food, food and other industries of fine,
powdery materials can be dry sieving use.

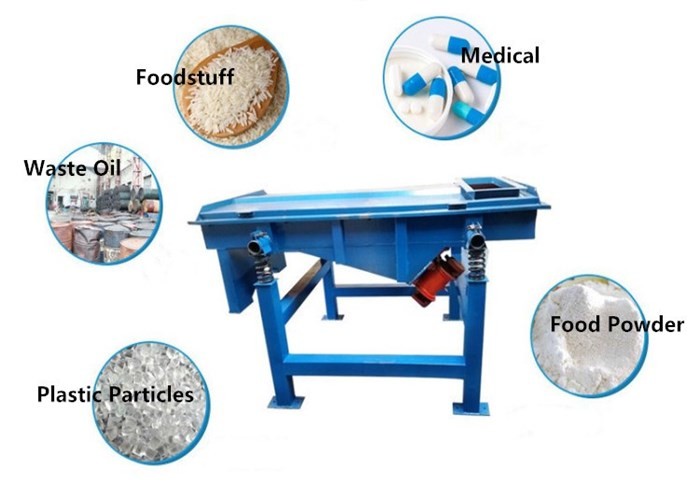

Applications Industries:
| Chemical industry: | resin, pigment, cosmetic, coatings, Chinese medicine powder |
| Food industry: | sugar powder, starch, salt, rice noodle, milk powder, sauce, bread
crumbs,food additive |
| Metallurgy, Mine industry: | aluminum powered, copper powder, ore alloy powder, welding rod
powder |
| Medicinal industry: | all kinds of medicine. |
Sand Vibrating Screen in loading and delivery:
1. Standard export packaging, the whole machine uses the
bubble-wrap packaging and can withstand pressure and impact and
effective protection of the machine.
2. Parts of the equipment and machines use the low moisture content
of wooden packaging to prevent damaged parts.
